Immersion Ultrasonic Testing Scanner for Plate Inspection

Ürün Açıklaması

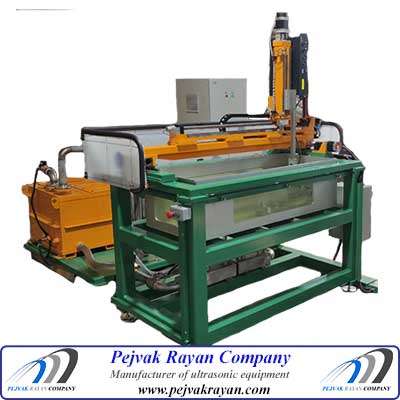

Pejvak Rayan’s Immersion Ultrasonic Testing Scanner is a high-precision, multi-axis system engineered for the non-destructive inspection of metallic plates under immersion conditions. Designed for applications that demand the highest levels of accuracy and repeatability, this advanced scanning system combines robust mechanical engineering with state-of-the-art ultrasonic technology. It features programmable three-axis motion (X, Y, Z), a corrosion-resistant immersion tank, and a heavy-duty steel frame to ensure long-term durability in industrial environments.1 The Immersion Ultrasonic Testing system supports up to four synchronized ultrasonic channels for simultaneous scanning, with transducers configurable for both normal and angle beam inspections. Its probe holder allows dual-plane adjustment, offering enhanced sensitivity to laminations, delaminations, and surface or subsurface cracks. Real-time A-Scan, B-Scan, C-Scan, and Strip Chart views are fully integrated into the software, enabling both live monitoring and post-inspection analysis.2 Engineered with modularity in mind, the Immersion Ultrasonic Testing Scanner is customizable to meet specific customer requirements—including extended axis ranges, alternate fixture designs, and optional Through-Transmission configurations. The integrated closed-loop water circulation and filtration system ensures consistent acoustic coupling and testing reliability. Ideal for use in industries such as aerospace, petrochemical, and heav
